What is aluminum machining?
Aluminum machining entails the diverse range of processes used in shaping, cutting or forming aluminum workpieces into precise, dimensionally complete forms. Machining techniques include milling, turning, drilling, laser cutting, abrasive waterjet, EDM and grinding. They involve the removal of material from workpieces to create finished components for diverse applications across industries such as aerospace, automotive, electronics and more
Importance of aluminum machining in various industries
Aluminum machining holds a central importance across all industries due to the material benefits in light weight, corrosion resistance and high strength-to-weight ratio. In most applications it’s pivotal for manufacturing components of high accuracy and low cost (relative to more expensive, better performing, exotic or heavier materials).
Aluminum’s versatility and cost-effectiveness make it indispensable for producing a wide range of functional and aesthetic parts.
Tool Life in Aluminum Machining
Factors affecting tool life

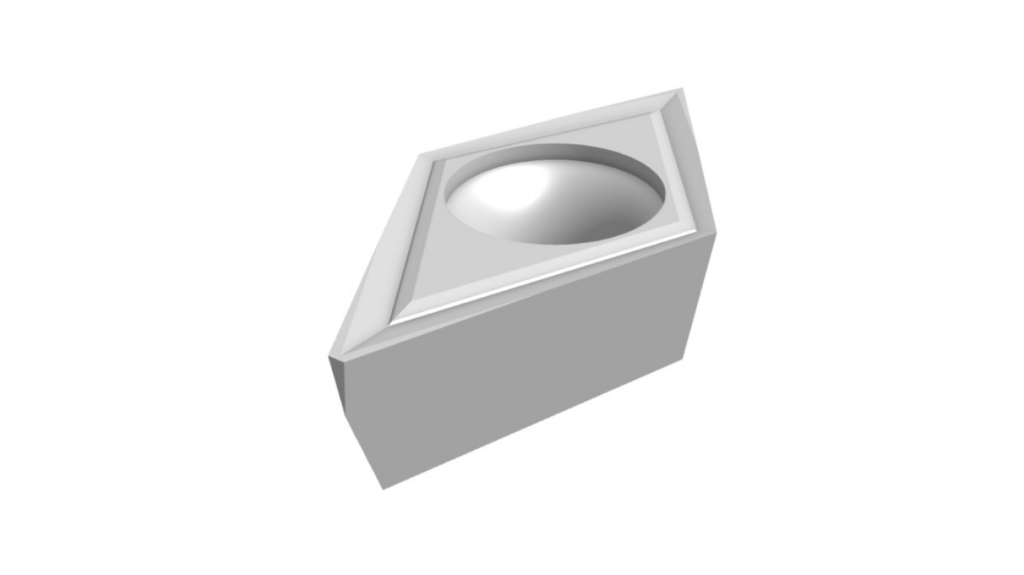

Tool life in aluminum machining is extensively dependent on cutting speed, feed rate, depth of cut, tool material, tool coating and coolant/lubrication. Higher cutting speeds and feed rates can increase tool wear (and productivity), while effective tool selection, tip geometry and lubrication can considerably extend tool life. Additionally, chip formation control, tool-chip interaction and workpiece material properties equally impact tool longevity.
Effect of cutting speed, feed rate, and depth of cut on tool life
In aluminum machining, cutting speed, feed rate and depth of cut all greatly affect tool durability. Higher cutting speeds and feed rates will increase tool wear due to greater friction and heat generation. Combinations of cutting parameters must be determined to balance material removal rates with tool life, for optimal overall productivity/profitability. Excessive depth of cut in particular accelerates tool wear and compromises machining performance.
Optimizing tool life in aluminum machining
To optimize tool life in aluminum machining, the setup must strike a balance between cutting parameters such as cutting speed, feed rate and depth of cut to achieve a cost-appropriate tool wear and productivity relationship. High-quality cutting tools with appropriate geometries, coatings and better materials, combined with effective coolant/lubrication strategies and optimized machine rigidity and workpiece fixturing will enhance tool life and process profitability.
Cutting Tools for Aluminum Machining
Types of cutting tools used

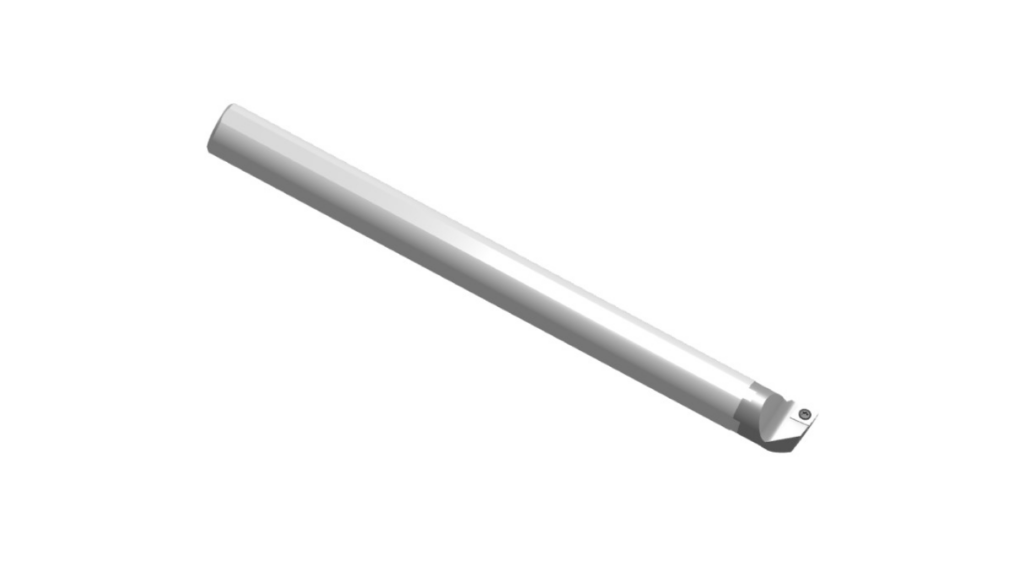

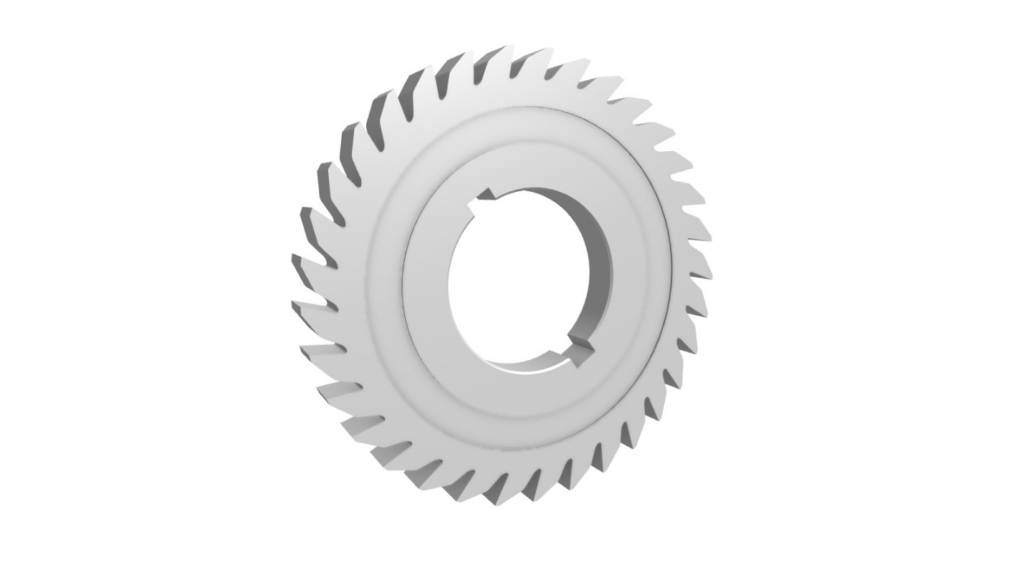

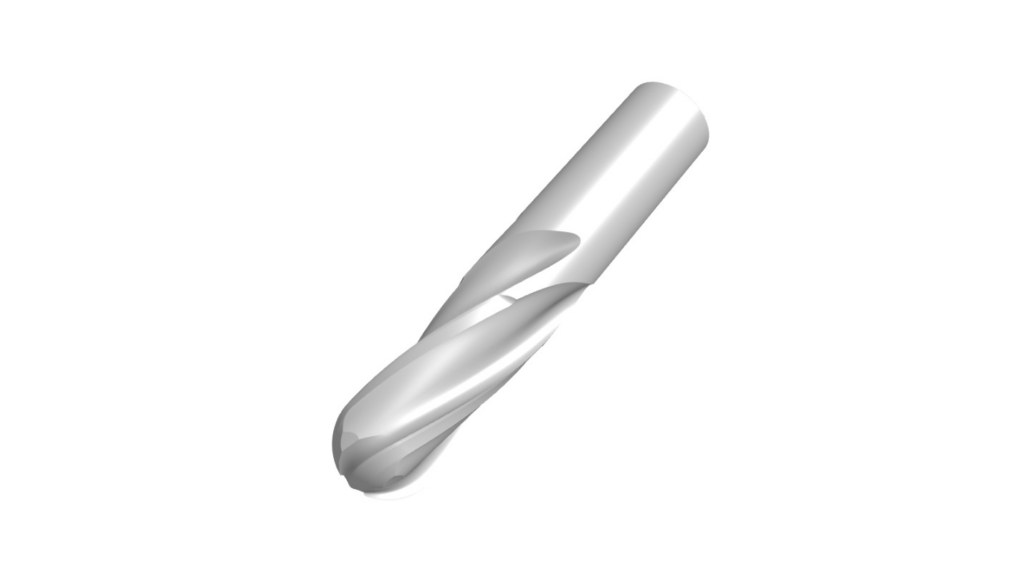

Common cutting tools used in aluminum machining include end mills, drills, reamers and CERMET inserts. End mills, such as flat, ball nose, and corner radius types, are versatile for general milling operations. Drills and reamers are used for hole-making, while inserts are employed in turning, milling and threading operations. Carbide and high-speed steel are common materials for these tools, with differentials in parameters, performance and lifespan.
Selection criteria for cutting tools
When selecting cutting tools, the setup must accommodate factors like tool material, coating (e.g., TiAlN, TiCN), geometry (e.g., rake angle, helix angle) and cutting edge design (for example chip breaker/extraction features). Choose tools optimized for aluminum’s properties to deliver effective material removal rate, chip evacuation, heat dissipation and surface finish. Consider machining parameters, workpiece geometry, and tool life requirements for optimal productivity as an overall, including tool resets/costs.
Advantages and disadvantages of different cutting tools
Carbide tools offer high hardness and wear resistance, imperative for high-speed machining. However they are brittle and prone to chipping, when overloaded. High-speed steel tools are tougher and less brittle, suitable for interrupted cuts, but have lower heat resistance and lower overall durability. Coated tools provide extended tool life and reduced friction but can have considerably higher initial costs, where uncoated tools are more affordable but overall tend to be less cost effective.
Alan B.
Mechanical Engineer
"Hands-Down the Best Platform and Partner for Fast, Quality Parts"
Jiga is the best way to get the parts you need, when you need them.
Aluminum High-Speed Machining
Benefits and challenges of high-speed machining in aluminum
High-speed machining (HSM) in aluminum typically delivers increased productivity, improved surface finish and reduced cycle times due to higher feed rates and job throughput. However, it generally results in increased tool wear, more localized heat generation and increased potential for vibration and chatter which can heavily effect both tool life and part quality. Effective coolant/lubrication, tool selection and particularly machine rigidity are imperative in overcoming these challenges to achieve the potential HSM benefits.
Optimizing cutting parameters for high-speed machining
Optimizing cutting parameters for high-speed machining of aluminum involves increasing cutting speeds and feed rates while retaining the depth of cut to maintain efficient chip evacuation and avoid heat dissipation issues. Use carbide or PCD tools with appropriate coatings. Implement advanced toolpath strategies like trochoidal milling, which can serve to reduce cutting forces and optimize material removal rates, delivering improved productivity and surface finish.
Impact on tool life and surface finish
HSM in aluminum will typically reduce tool life due to increased tool wear directly resulting from higher cutting speeds and feed rates. The consequent machine resets and additional cutter costs influence productivity and profitability. However, the approach often improves component quality, particularly surface finish by reducing tool marks and vibrations. Effectively considered tool selection, coolant/lubrication and machining parameters optimization are key in balancing tool life and surface finish with productivity and quality of outcome.
Material Removal in Aluminum Machining
Methods of material removal
Material removal in aluminum machining is achieved through various detailed parameter adjustments that are particular to milling, turning, drilling/reaming and grinding.
- Milling and turning involve rotating either a cutting tool (milling) or the workpiece (turning) to remove material from a workpiece.
- Multi axis CNC blurs the differentials between these techniques and can include both relative motion types.

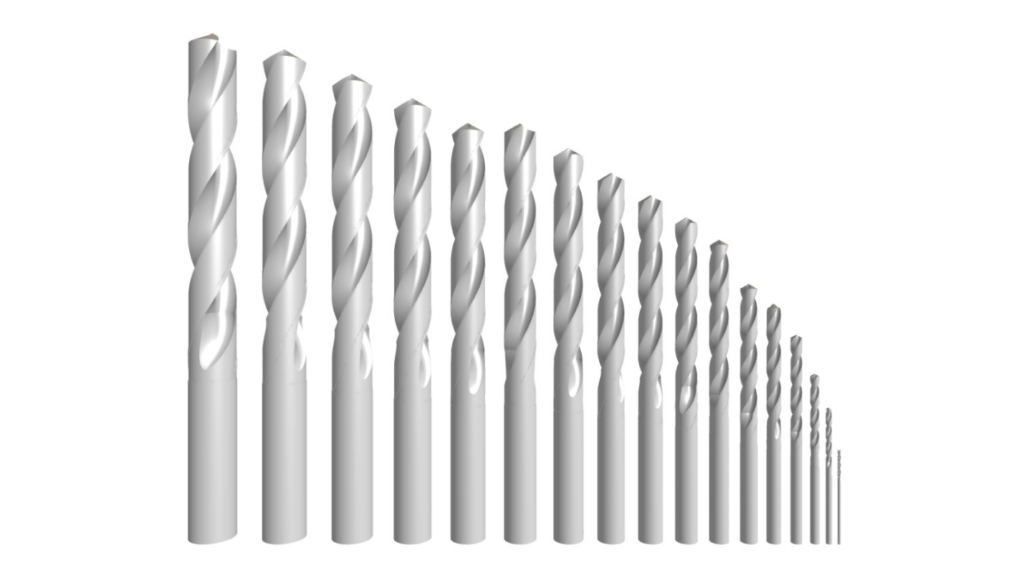

- Drilling/reaming creates holes using fluted rotating cutting tools, usually of high speed steel, although larger holes may use insert cutters and again blur the difference between milling and drilling.
- Grinding employs abrasive particles, generally bonded into fast rotating discs, to remove material from the workpiece surface through mutual ablation.
Factors influencing material removal rate
Material removal rate in aluminum machining is extensively influenced by cutting speed, feed rate and depth of cut. Higher cutting speeds and feed rates increase material removal rates by facilitating faster chip formation and evacuation. Depth of cut affects the volume of material removed per pass.
Additionally, tool geometry, coolant/lubrication, and machine rigidity also impact tool and equipment tolerance of higher material removal rates.
Optimizing material removal in aluminum machining
Optimizing material removal in aluminum machining involves experience based and cutter influenced selection of cutting speed, feed rate and depth of cut to maximize material removal rates without adversely or excessively increasing tool life and surface finish.
Use high-speed machining techniques, removal-rate appropriate tooling and effective coolant/lubrication strategies. Machining strategies like trochoidal milling will improve chip evacuation and offer benefits in material removal efficiency.
Corrosion Resistance in Aluminum Machining
Effect of machining on corrosion resistance
Machining can somewhat affect the corrosion resistance of aluminum by introducing surface defects, residual stresses and microstructural changes that may promote both initiation and propagation of oxidative attack. Proper machining techniques for better surface finish, surface treatments and post-machining cleaning processes are essential to minimize these adverse effects, delivering greater long-term durability of aluminum components in corrosive environments.
Preventing corrosion during and after machining
To prevent corrosion during and after machining;
- Use appropriate cutting fluids to minimize heat buildup, reduce localized disruption and minimize surface damage.
- Apply corrosion-resistant coatings or surface treatments on machined components soon after machining.
- Cleaning and drying of machined parts will remove contaminants and reduce the likelihood of corrosion initiation. Fingerprints are a major culprit.
- Storage and handling of machined aluminum components in controlled environments will mitigate exposure to corrosive agents.
Surface treatment options for improved corrosion resistance
Surface treatment options for improved corrosion resistance in aluminum machining included;
- Anodizing, forming a protective oxide layer on the surface
- Chromate conversion coating including Alodine, Iridite, Chromicote providing barrier and sacrificial coatings.
- Chemical conversion coatings such as Bonderite (iron phosphate or zinc phosphate conversion)
- Powder coating, which offers a durable protective oxygen/liquid impermeable layer.
Selection of surface treatment depends on the specifics of the application requirements such as environmental conditions.
CNC Machining of Aluminum
Advantages of CNC machining in aluminum
CNC machining offers diverse advantages in aluminum processing, delivering precise control over machining parameters, ability to simply extract complex geometries and tight tolerances. It enables greater repeatability and faster throughput, reduces material waste and serves to optimize productivity.
CNC machines can handle the gamut of aluminum alloys and their machining parameter needs, providing for diversity of manufacturing processes. Additionally, automated tool changes and part handling considerably improve productivity and drive down labor costs.
Programming considerations for CNC machining
When programming CNC machining for aluminum, optimal toolpaths are integral to minimized cutting forces and approaching ideal tool lifespan. The selection of appropriate cutting parameters – cutting speed, feed rate and depth of cut are critically important. Toolpath strategies for efficient chip evacuation and surface finish optimization will assist in adhering to dimensional accuracy and part integrity requirements.
Optimizing CNC machining parameters for aluminum
To optimize CNC machining parameters for aluminum, select cutting speed, feed rate and depth of cut to balance material removal rates with tool life, part precision demands and surface finish requirements. Select application and productivity-appropriate tooling and coolant/lubrication material and delivery approaches. In particular, consider implementing efficient toolpath strategies such as trochoidal milling, to maximize productivity and minimize machining time while ensuring part quality.
Cutting Fluids in Aluminum Machining
Importance of cutting fluids in aluminum machining
Cutting fluids fulfill a crucial role in aluminum machining by extracting cutter/workpiece heat, reducing cutter friction and assisting in cuttings extraction. Reduction in tool wear, improved surface finish and enhanced chip evacuation are keys to productivity and quality of parts.
Additionally, cutting fluids offer some protection against corrosion and rapid tool degradation so this is essential for optimizing machining performance, setup durability (parts completed per tool replacement) and surface quality.
Types of cutting fluids used
Common types of cutting fluids used in aluminum machining include;
- Water-soluble emulsion fluids
- Semi-synthetic fluids
- Full synthetic fluids
- Straight oils.
Water-soluble fluids are versatile and economical, while semi-synthetics offer improved lubrication. Synthetic fluids provide excellent cooling and lubrication properties at a higher cost, and straight oils offer superior lubrication but can be less effective in extracting heat. Selection is an experience based process, based on machining requirements, tooling and environmental considerations.
Effect on tool life, surface finish, and chip evacuation
The main parameters of cutting speed, feed rate and depth of cut significantly impact tool life, surface finish, part precision and chip evacuation. Proper optimization balances these factors to restrain tool wear to a tolerable rate, deliver the surface quality required and ensure effective flow of cuttings away from the workpiece.
Effective coolant/lubrication strategies further enhance machining performance by reducing friction, dissipating heat, and improving chip flow.
Cutting Forces in Aluminum Machining
Factors influencing cutting forces
Primary factors that can negatively affect cutting forces in aluminum machining include cutter tip transit velocity, feed rate and depth of cut.
Material properties such as alloy composition and grain structure also affect cutting forces, as tougher alloys inevitably offer greater resistance to the passage of the cutter.
Tool geometry, coatings and coolant/lubrication strategies influence friction and heat generation, necessarily impacting cutting forces.
Machine rigidity and workpiece fixturing play roles in minimizing vibration and deflection, which indirectly affect cutting forces by making the cut process .
Measuring and minimizing cutting forces
Cutting forces in aluminum machining can be measured using dynamometers, force sensors, electrical power consumption analysis algorithms or surface profiling techniques.
Implementing advanced machining strategies and cutting force monitoring can reduce cutting forces and allow very precise optimization of parameters to deliver the exact level of cutting forces deemed ideal for tool life, productivity and profitability.
Impact on tool wear and surface quality
Higher cutting forces inevitably lead to increased tool wear due to, resulting from greater friction that is consequent on higher contact pressures. This generally results in accelerated tool degradation and increased need for setup and renewal.
Excessive cutting forces will negatively impact surface quality by promoting tool and machine deflection, vibration/chatter and resultant surface irregularities, leading to poorer parts and reduced dimensional accuracy and repeatability.
Surface Finish in Aluminum Machining
Factors affecting surface finish
Surface finish in aluminum machining is extensively and deeply affected by cutting parameters, tool geometry and condition, coolant/lubrication effectiveness, machine rigidity, workpiece fixturing rigidity, and material properties.
Effective selection and optimization of cutting parameters and good machine/tool/part/cutter deflection properties are crucial for achieving acceptable surface finishes and precision in machined parts.
Techniques for achieving desired surface finish
To deliver surface finishes in aluminum machining that meet quality expectations;
- Optimize cutting parameters for minimal tool vibration and chatter
- Use sharp cutting tools with appropriate geometries
- Ensure effective coolant/lubrication to reduce friction and heat
- Implement effective workpiece fixturing and ensure good machine rigidity
- Employ finishing operations for post-processing to improve surface finish as needed. These can include bead blasting, sand blasting, etching, polishing etc.
Surface roughness measurement and evaluation
Surface roughness in aluminum machining is typically measured using contact profilometers or non-contact optical profilometers. These devices assess surface irregularities and texture, providing quantitative data on parameters like Ra (average roughness) and Rz (maximum peak-to-valley height).\
Evaluation involves review of measured values against specified surface finish requirements, to ensure compliance with applicable quality standards and application requirements
Chip Evacuation in Aluminum Machining
Importance of efficient chip evacuation
Efficient chip evacuation is closely tied to quality of outcome in aluminum machining, by preventing chip buildup, tool damage and surface irregularity. This facilitates less interruption in machining operations, reduces cutting forces and heat generation and improves tool life.
Additionally, it helps maintain consistent surface finishes and dimensional accuracy by preventing chip recutting, galling and surface contamination, enhancing productivity and part quality.
Methods for effective chip evacuation
This can be achieved through strategies such as
- Use of appropriate cutting parameters to promote chip breaking
- Implementing optimized tool geometries and coatings to facilitate chip flow
- Ensuring proper coolant/lubrication application to aid chip removal
- Employing chip evacuation mechanisms like through-spindle coolant, chip conveyors, or air blasts to remove chips rapidly as they are generated.
Impact on tool life and machining efficiency
These strategies positively impact tool life by reducing the risk of chip recutting, built-up edge formation, galling and tool wear. Additionally, they enhance machining efficiency by minimizing downtime from chip-related issues, optimizing cutting parameters and maintaining consistent machining conditions. These will all be reflected in improved productivity/profitability and part quality.
Machining Aluminum Alloys
Commonly machined aluminum alloys
These alloys are presented as examples of properties for various machining applications, with considerations for strength, corrosion resistance, and machinability. The comprehensive list is considerable and requires careful consideration.
Specific considerations for different aluminum alloys
These considerations highlight the diverse machinability characteristics of aluminum alloys, but this is not a comprehensive database, as the family of these materials is very extensive.
Optimizing machining parameters for aluminum alloys
Optimized machining parameters for aluminum alloys require consideration of cutting speed, feed rate and depth of cut, fixturing and tool stiffness, lubricant regime and cutter path optimization.
Start with conservative parameters and gradually increase the aggressiveness of the approach while closely monitoring tool wear and surface finish. High cutting speeds and moderate feed rates offer efficient material removal while ensuring effective chip evacuation and coolant/lubrication availability to minimize heat generation.
Heat Management in Aluminum Machining
Effects of heat on tool life and surface quality
Excessive heat in aluminum machining will adversely affect tool life by accelerating tip wear/chipping and reducing tool hardness 9in HSS tools). Heat will also compromise surface quality by increasing thermal distortion, localized metallurgical/property changes and reduced chip evacuation, leading to surface defects.
Proper coolant/lubrication, cutting parameters optimization based on actual (as opposed to expected) performance and tool characteristics selection are essential in the mitigation of the adverse effects of heat.
Techniques for reducing heat generation
Employ optimization of cutting parameters to beneficially affect friction and cutting forces;
- Use high-speed machining strategies
- Employ coolant/lubrication effectively to better dissipate heat
- Implement proper tool geometries and coatings to reduce tool-chip contact area
- Ensure machine and workpiece fixturing rigidity to minimize vibration-induced heat.
Heat treatment options for improved aluminum machinability
Heat treatment options to improve aluminum machinability include;
- Annealing, which softens the metal, reducing cutting forces and tool wear
- Precipitation hardening treatments, like T6 tempering, can enhance aluminum’s strength and machinability
- Stress relieving treatments can reduce internal stresses in the material, minimizing distortion during machining processes, benefitting precision and surface finish.
Sam H
Manufacturing Business Consultant
"Excellent platform for prototyping & manufacturing"
Jiga is the best way to get the parts you need, when you need them.
Lightweight Aluminum Materials
Advantages of aluminum as a lightweight material
Aluminum and its alloys offer specific advantages as a lightweight material;
- High strength-to-weight ratio, making it ideal for applications where weight reduction is critical.
This benefits fuel efficiency in automotive and aerospace industries.
It improves user experience in carried or hand-operated equipment.
It facilitates easier handling and installation in construction.
- Additionally, aluminum’s corrosion resistance is beneficial in the majority of applications.
- The materials’ recyclability enhance its versatility and sustainability.
Challenges and considerations in machining lightweight aluminum
Machining lightweight aluminum presents challenges resulting from relatively low thermal conductivity, leading to heat buildup and tool wear.
Its softness can cause burring, galling and built-up edge formation.
Additionally, aluminum’s tendency to stick to cutting tools requires effective chip evacuation strategies, to prevent cuttings-disrupted processing.
Optimization results from close attention to cutting parameters, tooling selection and coolant/lubrication application to deliver high productivity and high-quality machining outcomes.
Optimizing machining parameters for lightweight aluminum
To idealize machine setup parameters for lightweight aluminum, prioritize high cutting speeds and moderate feed rates. This serves to minimize cutting forces and heat generation.
Utilize sharp cutting tools with appropriate geometries and coatings to enhance chip evacuation and deliver higher quality surface finish.
Employ effective coolant/lubrication strategies to dissipate heat and reduce friction.
Continuously monitor machining outcomes and adjust parameters based on real-world outcomes for optimal results.
Tool Coatings for Aluminum Machining
Types of tool coatings used
These coatings enhance tool performance and longevity in high productivity applications
Benefits and limitations of different tool coatings
These coatings offer various benefits for machining aluminum, with some diverse suitability and influences on productivity/quality.
Effect on tool life, cutting speed, and surface finish
These coatings play a various crucial role in improving productivity, tool life and part quality.
Cutting Parameters for Aluminum Machining
Optimizing cutting speed, feed rate, and depth of cut
To optimize cutting parameters in aluminum machining, start with moderate assumed/referenced values and gradually increase the aggressiveness of the attack while monitoring outcomes for negative consequences.
Generally, higher cutting speeds and moderate feed rates are preferred, along with shallow cuts. An agile approach to optimization is strongly beneficial in establishing volume production, with less adjustment being required as outcome consistency is achieved.
Impact on tool life, material removal, and surface finish
The impact of cutting parameters on tool life, material removal, and surface finish in aluminum machining is crucial. Higher cutting speeds and feed rates can increase material removal rates but may also lead to shorter tool life due to increased tool wear and edge chipping risk.
Experienced and effective selection and optimization of cutting parameters can mitigate tool wear while achieving efficient material removal and satisfactory surface finish.
Considerations for different aluminum alloys
Cast Aluminum Machining
Challenges and considerations in machining cast aluminum
Machining cast aluminum presents some additional challenges due to its variable microstructure and potential for porosity and inclusions. Considerations include;
- Selecting appropriate cutting tools and parameters to minimize tool wear and surface defects
- Implementing task-appropriate chip evacuation strategies to manage chip formation where chip consistency can be low
- Ensuring appropriate and effective coolant/lubrication application to dissipate heat and improve surface finish, where thermal conductivity can be more variable than in more structurally consistent and isotropic materials.
Optimizing machining parameters for cast aluminum
As with any application, commence assessment with conservative values and gradually increase the aggression of attack while monitoring for negative consequences. Use sharp cutting tools with appropriate geometries and coatings to minimize tool wear. Ensure good chip evacuation strategies and management of chip formation.
Effect on tool life, surface finish, and dimensional accuracy
Machining aluminum castings can significantly impact tool life, surface finish and dimensional accuracy. Excessive tool wear may occur due to the variable microstructure and potential presence of hard inclusions in castings. Surface finish will commonly be affected by casting imperfections/cavities, often requiring additional finishing operations for high quality outcomes. Dimensional accuracy can be compromised due to casting variations.
Aluminum Alloy Machining
Characteristics of commonly machined aluminum alloys
These characteristics provide guidance for selecting the appropriate aluminum alloys, but this list is far from comprehensive in representing a wide and diverse family of alloys
Specific considerations for different aluminum alloys
These considerations help optimize machining processes for different aluminum alloys, ensuring efficient material removal, improved surface finish, and extended tool life. Adjustme
Optimizing machining parameters for aluminum alloys
Heat Treatment in Aluminum Machining
Effects of heat treatment on aluminum machinability
The heat treatment previously applied to material can seriously alter machinability. Annealing can be expected to soften the material, facilitating reduced cutting forces and lower tool wear. Precipitation hardening treatments are intended to increase material hardness, inducing higher cutting forces and degraded machinability.
Optimizing heat treatment processes for improved machining
To optimize heat treatment processes for improved machinability, control parameters such as heating and cooling rates, soak times and temperatures to achieve preferred material properties. Tailoring the heat treatments to balance material hardness and machinability ensures parts lend themselves to efficient material removal.
Impact on tool life, surface finish, and dimensional stability
Heat treatment in aluminum machining significantly influences tool life, surface finish and dimensional stability. Inappropriate heat treatment commonly leads to increased tool wear, particularly due to changes in material hardness.
Variations in material properties can adversely affect surface finish and dimensional stability, potentially causing elevated risk of surface irregularities and dimensional inaccuracies.
Machining High-Strength Aluminum
Challenges and considerations in machining high-strength aluminum
Machining high-strength aluminum presents some unique challenges due to its elevated hardness and toughness, resulting in higher cutting forces and additional tool wear.
Counters to this are selecting appropriate cutting tool materials and operational parameters to withstand or moderate these forces, implementing effective coolant/lubrication strategies to dissipate heat and ensuring machine rigidity to minimize vibration-induced issues.
Optimizing cutting parameters for high-strength aluminum
To optimize throughput in machining high-strength aluminum, commence with lower cutting speeds and feed rates, before increasing the rate of removal and observing the outcomes for detrimental effects.
- Utilize sharp cutting tools with appropriate geometries and coatings to withstand higher material hardness.
- Select appropriate coolant/lubrication materials and application methods to dissipate heat.
- Gradually adjust parameters and assess outcomes based on tool wear, surface finish and throughput benefits or deteriorations observed in the resulting parts.
Effect on tool life, material removal, and surface finish
In aluminum machining, tool life, material removal and surface finish are intricately interrelated. Sub-optimal parameters will shorten tool life due to increased wear and chip risk, affecting overall productivity and quality.
Adjustments to parameters can detrimentally or beneficially affect surface finish, with higher speeds typically yielding smoother finishes for example.
Balancing all parameters optimizes machining efficiency, prolongs tool life and ensures desired surface quality while enabling profitable throughput.
Jerry S.
Mechanical Engineer
"The holy grail of good speed, quality, and price for custom parts"
Jiga is the best way to get the parts you need, when you need them.
Key Factors to Know in Aluminum Machining
Important considerations for successful aluminum machining
Successful outcomes in terms of the balance between quality and productivity in aluminum machining requires a considered and adaptive approach to these considerations.
- Select appropriate cutting tools and parameters to suit the alloy’s properties, to minimize tool wear and achieve the productivity/quality balance.
- Ensure optimal chip removal to prevent buildup, recutting galling and tool damage.
- Apply appropriate coolant/lubrication to dissipate heat and reduce friction, enhancing tool life and surface quality.
- Maintain machine and part-clamping rigidity and stability to minimize vibration-induced issues and deliver optimal dimensional accuracy.
- Regularly monitor machining performance and make adjustments to optimize efficiency and maintain quality.
- Consider post-machining treatments such as heat treatment or surface finishing to improve the part/material’s properties and surface
Understanding the impact of various factors on machining outcomes
As discussed, cutting speed, feed rate and depth of cut immediately and directly affect material removal rates, tool life, and surface finish. Tool selection aspects such as tool material and geometry influence machining efficiency and tool wear. Machine and part retention rigidity and stability are crucial for maintaining dimensional accuracy and surface quality.
Workpiece characteristics, such as alloy composition and microstructure, affect chip formation and tool-chip interactions. Effective coolant/lubrication strategies help dissipate heat and reduce friction, improving tool life and surface finish.
Understanding and optimizing these factors holistically contributes to achieving desired machining outcomes in aluminum machining processes.
Tips and best practices for efficient and effective aluminum machining:
Conclusion
The machining of Aluminum is a key family of industrial processes and it’s effective execution must based on a deep understanding of the optimum quality parameters, the best approaches to improving throughput, the maintenance of cutters and machines and the assessment of the quality-cost-productivity equation.
Variations in material type, part complexity, available equipment and preferred cutter, coolant and chip control approaches. When the balance is right, the machining of Aluminum has high productivity at low cost, but small deviations in process parameters can have profound detrimental effects on all aspects of the process.
It is from this delicate balance that great product execution occurs, and this is why knowledge, skill and deep learning in the feedback loops from quality assessment are utterly critical to performance.
