Tips to simplify designsEveryone experiences black oxide coatings at some point – often in highly appreciated and high value items that leave a strong impression of quality and worth. That’s a part of the appeal of the process – that it is closely associated with expensive things!
In manufacturing and metal finishing, black oxide coating remains one of the most cost-effective and widely employed surface treatments. From enhancing corrosion resistance to improving aesthetics and retaining tight dimensional control, the method lends a unique blend of performance and visual appeal to ferrous and non-ferrous components alike. This is a deep dive into the science, process, benefits, and use cases of black oxide finishing.
How corrosion-resistant is black oxide?
On its own, black oxide offers limited protection. It’s typically paired with oil or wax finishes to enhance corrosion resistance, making it suitable for indoor or mildly corrosive environments.
Sean B.
Mechanical Engineer
"I've recommended it to all my colleagues in manufacturing."
Get your first quote from verified suppliers. No cost, no commitment.
What is Black Oxide Coating?
Black oxide, also termed blackening, is a hot chemical conversion coating applied to ferrous metals, stainless steels etc. The treatment converts the metal surface into magnetite (Fe₃O₄) or a similar dark oxide compound, creating a dense, durable, and visually uniform finish.
The cold process is a deposition of Copper selenide which has similar and gives a visually similar result.
When the hot processes are applied to Copper and Zinc and their alloys they also oxide convert the surface for each of these metals.
Unlike paints or plating, black oxide is generally not a deposited layer — it’s a transformation of the metal’s surface. This means it doesn’t significantly alter part dimensions or interfere with tight tolerances, making it especially valuable in precision applications. Where the cold process does involve a deposition, it is of a very fine layer with no dimensional change consequences.
The processes used primarily on ferrous and Copper based alloys are sufficiently thin that, despite consisting of an intrinsically insulative oxide layer, the surface treatment does NOT interfere with electrical connection between parts by simple contact. This makes it useful in static discharge or earthing parts protection.
Do black oxide coated parts remain conductive?
Yes. Unlike many coatings, black oxide is not a barrier to connection to the electrical conductivity of the base metal, making it useful in electronic and grounding applications.
Black Oxide Coating process steps
There are several types of process, but the most common is the hot black oxide treatment for steel, iron, etc. These are the hot process steps:
1. Cleaning and degreasing
Parts are first cleaned thoroughly using alkaline or solvent-based cleaners to remove oil, grease, and other contaminants.
2. Pickling (Acid Etch)
An acid dip is used to remove rust, scale, or other staining, delivering a surface for uniform results.
3. Black Oxide bath
The parts are submerged in a heated alkaline solution (usually Sodium hydroxide, nitrates, and nitrites) maintained at around 285–295°F (140–146°C). The steel reacts to form a layer of magnetite.
4. Rinse
Parts are rinsed in deionized water to remove residual chemicals.
5. Sealant application (Post-Dip)
To improve corrosion resistance and enhance appearance, a post-treatment like oil, wax, or polymer sealant is applied.
Types of Black Oxide Coating
There are essentially three types of blackening process in use:
Hot Black Oxide
- Most common
- Applied to steel, stainless steel, and Iron
- Requires heated tanks and strict temperature control
- High corrosion resistance when sealed.
Mid-Temperature Black Oxide
- Operates at lower temperatures (around 220°F)
- Safer and less energy-intensive
- Slightly lower corrosion resistance than hot processes
- Used on Copper and Zinc alloys as well as ferrous metals.
Cold Black Oxide
- Room-temperature process using selenium-based solutions
- Deposits a black coating, but it’s not a true conversion layer
- More decorative than functional; lower durability
Properties and benefits
Dimensional Stability
Black oxide coatings are ultra-thin (typically 0.0001–0.0002 inches) and preserve part geometry. There’s no measurable buildup, so parts can retain tight tolerances. Thickness is typically uniform across corners and flats.
Does black oxide add thickness to a part?
No. Black oxide is a conversion coating that chemically alters the surface. It adds virtually no thickness (typically less than 0.5 microns), preserving tight tolerances.
Corrosion resistance
The coating offers limited standalone protection (~8–24 hours of salt spray resistance). However, when sealed with oil or wax, corrosion resistance increases dramatically — up to 100–200 hours, depending on environment and maintenance. The permeable oxide coating hosts the sealant, rendering it considerably more robust.
Improved lubricity
Black oxide creates a porous surface, and the porosity holds lubricants, reducing friction and galling in moving parts.
Aesthetic appeal
It provides a uniform matte to semi-gloss black finish, depending on the sealant — widely used for military gear, firearms, fasteners, and automotive parts.
Light reflectivity reduction
The dark finish helps reduce albedo/glare, ideal for optical equipment and tactical military components.
Enhanced adhesion
Black oxide surfaces are excellent substrates for further coatings, such as paints, lacquers, or adhesives. The combination of a tough, porous substrate and various penetrative coatings makes for very high keying strength.
Applications
Black oxide is used in a wide range of sectors:
- Automotive: brake components; gears and shafts; fasteners decorative trim
- Aerospace: precision tools; connectors; bushings
- Firearms and defence: barrels, bolts, receivers; tactical optics and mounts; knife blades and sheaths
- Electronics: EMI shielding components; matte-finished hardware
- Industrial equipment: bearings; couplings; metal cutting tools, general tools
What is black oxide coating used for?
Black oxide is used to improve corrosion resistance, reduce light reflection, and enhance the aesthetic appearance of metal parts—especially steel, stainless steel, and copper alloys.
Design considerations
When incorporating black oxide into product design or part finishing, various factors influence design decisions:
- Tolerances: Since there’s no dimensional buildup, the process is ideal for tight-tolerance assemblies.
- Material Compatibility: Not all metals can undergo the same blackening process. Stainless steel requires a different treatment. Non-ferrous metals often use a cold or modified black oxide variant.
- Post-Treatment Requirements: Always consider how parts will be sealed (oil, wax, or polymer) to match corrosion resistance expectations.
- Environmental Exposure: For outdoor or high-humidity environments, black oxide may require frequent re-oiling unless sealed with a long-lasting polymer or lacquer.

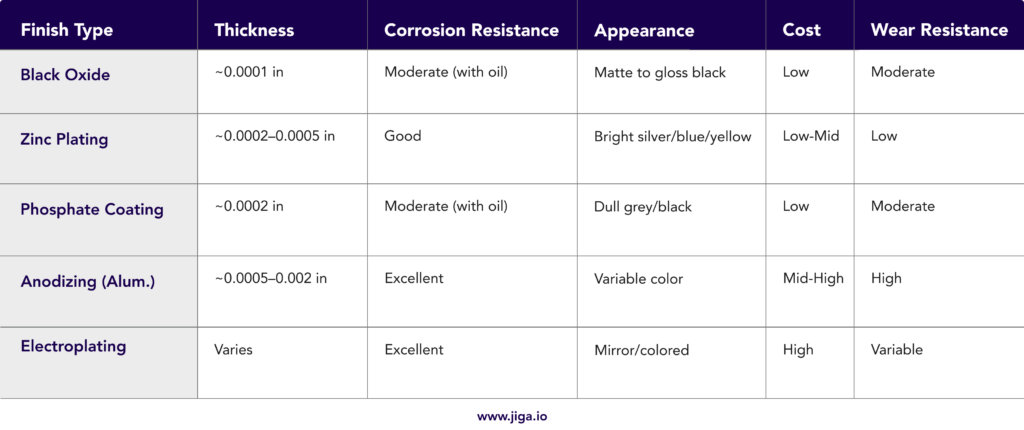

Black Oxide vs other metal finishes
Environmental and safety considerations
The hot black oxide process uses strong alkaline solutions and must be managed with appropriate PPE, ventilation, and waste treatment systems. The disposal of nitrate- and nitrite-rich waste requires compliance with local environmental regulations.
Many facilities are switching to mid-temperature or eco-friendly cold processes to reduce energy use and chemical handling risks and ease the compliance issues, through lower intrinsic toxicity chemistries.
Maintenance and lifespan
For long-lasting performance:
- Reapply oil/wax periodically to preserve corrosion resistance.
- Avoid exposure to harsh chemicals that can strip the coating.
- Store in dry environments when possible.
In heavily used parts like tools or firearms, black oxide may wear off over time, but it can be reapplied without any special consideration.
Standards and specifications
Black oxide treatments are covered under several industry standards:
- MIL-DTL-13924: Black oxide finish for ferrous metals (military spec)
- ISO 11408: Specifications for black finishes on iron and steel
- ASTM D769: Guide for black oxide coatings and post-treatments
Understanding these specifications ensures that finished parts meet performance, compatibility, and appearance expectations.
Javier L
Principal Systems R&D Mechanical Engineer
"Game changing in the online manufacturing space"
Get your first quote from verified suppliers. No cost, no commitment.
Is Black Oxide right for your application?
Black oxide coating remains one of the simplest, most cost-effective, and visually appealing surface treatments available, adding a high-quality impression without adding significant cost. It offers modest corrosion protection, enhances coefficient of friction by lubricant retention, preserves critical dimensions, and improves the appearance of components across industries.
And finally
In a world of high-tech coatings and advanced plating processes, black oxide is a subtle and effective choice — its reliability, economy, and aesthetic value continue to earn it a place in high end manufactured goods. Whether you’re finishing machined parts, creating consumer hardware, or producing precision assemblies, black oxide delivers durability and depth without serious cost.
Hybrid treatments and environmentally conscious blackening methods are expanding what black oxide can do — opening up even more opportunities for this trusted finishing method.
