In engineering, often seemingly dull and even insignificant design choices are quietly crucial role in delivering functionality, durability, and cost effectiveness of components.
Virtually always, when designing with parts that involve joints, edges, or transitions between surfaces, engineers use chamfers and/or fillets to achieve effective union or motion between parts.
These design elements are essential for stress distribution, aesthetics, ease of manufacturing, wear reduction and safe handling. While both chamfers and fillets modify the edges of components, they serve essentially different purposes and are applied based on specifics of the engineering specifications requirements.
This article compares these two edge-refinement approaches, their applications, and how each feature contributes to design, performance, and manufacturing ease/cost.
Daniel V
Lead Engineer
"My favorite manufacturing platform"
Jiga is the best way to get the parts you need, when you need them.
Chamfer: Where and why it’s used

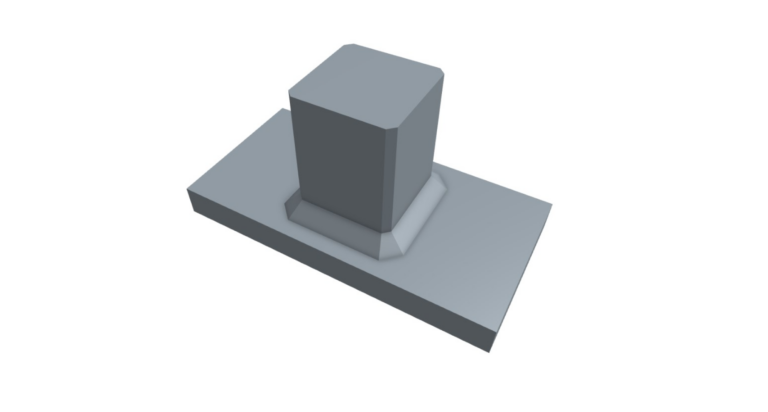

A chamfer is a transitional edge between two intersecting surfaces, typically created by cutting off the sharp corner at an angle. This added surface blends the incident angle of the meeting and is of a width that is selected to meet various possible design criteria. It involves beveling the corner of surface union, typically forming a consistent width, 2D surface, not a curved or rounded blending. The angle of the chamfer can vary depending on the application, but it most commonly lies halfway between the two primary surfaces.
Chamfers are predominantly used in mechanical and structural engineering to provide a sharp-but-not-sharp, clean edge that minimizes stress concentration that can otherwise lead to chipping, crack initiation and flaking. Chamfers help ensure that parts fit together with reduced interference potential, particularly in the case of close-mating parts such as bolts, nuts, and screw heads.
Applications of Chamfers:
1. Assembly fitment

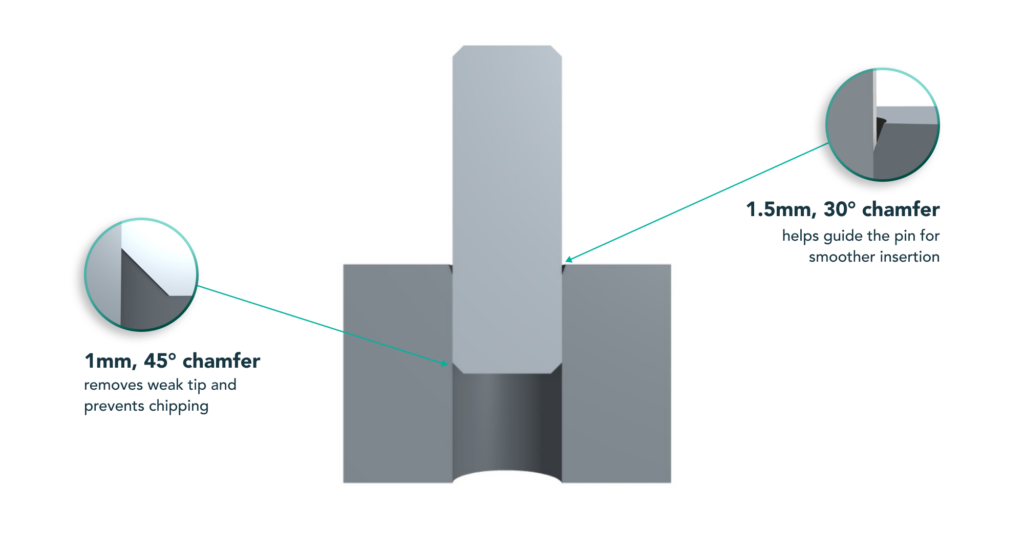

Chamfers are key to making many assembly processes smoother, where components are to be joined, inserted, or aligned. To illustrate, chamfered edges help guide mating parts into place, exemplified by inserting a machine dowel into its location hole. A chamfered dowel and hole edge allow for easier insertion and helps reduce damage such as flaking, spalling and bruising on the edges of both components.
2. Stress distribution
When parts experience stress, sharp corners can lead to stress concentration, which may initiate fractures at these vulnerable areas. A chamfer helps relieve these stresses by creating a transition between surfaces, eliminating the at-risk areas.
3. Aesthetics

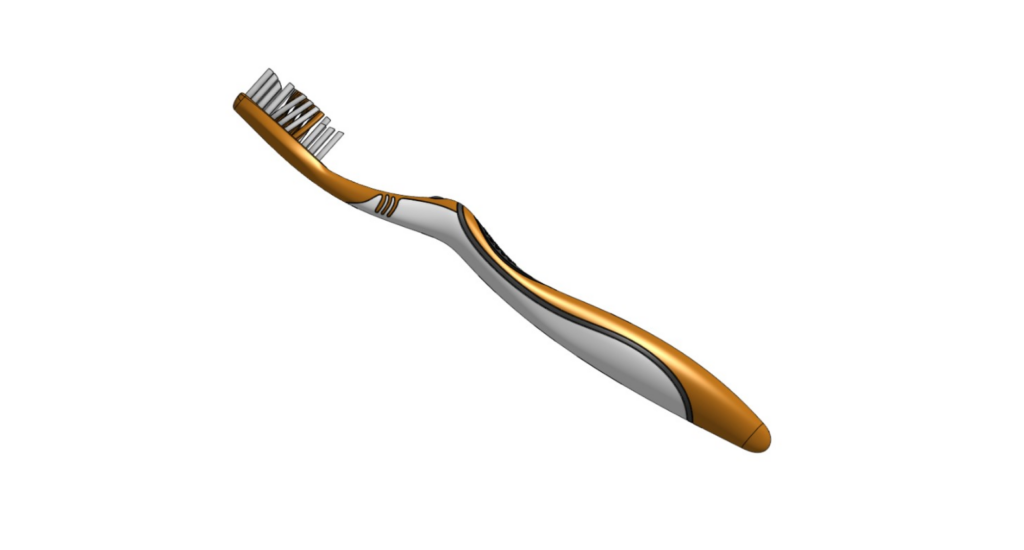

Chamfers can also offer aesthetic value in design. For example, in the design of consumer products such as electronics, chamfered edges provide more deliberate, finished, and micro-error free appearance, which enhances the product’s apparent quality.
4. Safety

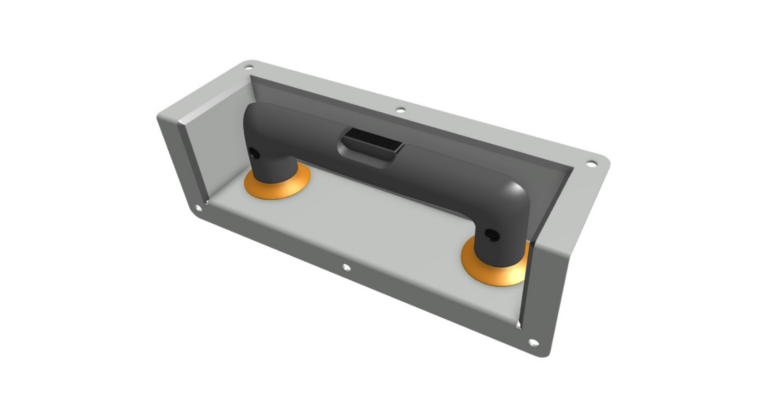

Chamfers can be used to eliminate sharp edges that could cause injury during handling. This is particularly important in heavily handled and high-force products like tools, kitchenware, and building hardware involved in human interaction.
5. Manufacturing and tooling

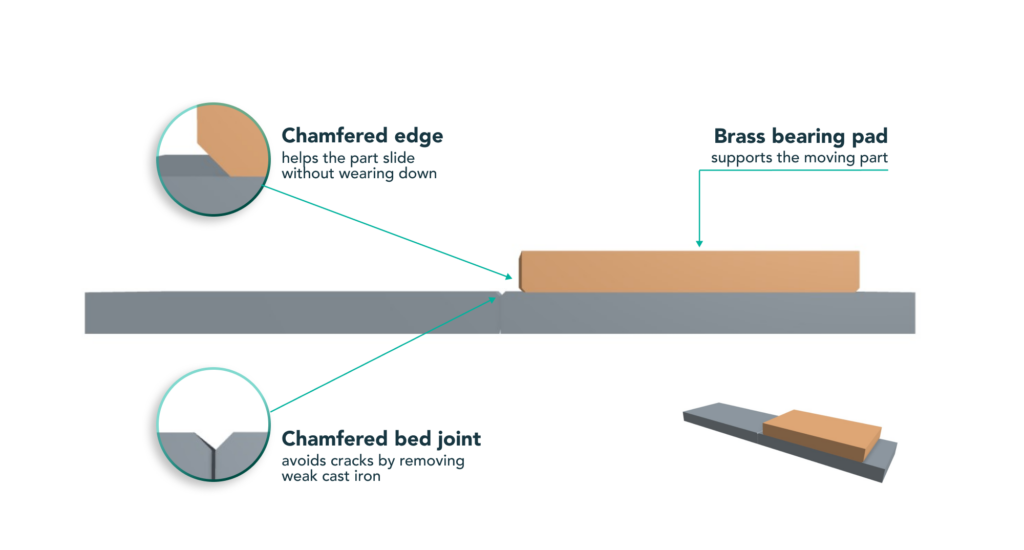

In manufacturing, chamfers are used to facilitate easier fitting or assembly. They can deliver high quality in machining processes by reducing the precision and care needed in break-out points and by providing clearer alignments for subsequent processes like welding or fitting.
Shaked S
Purchasing Manager
"A consistent 20% cost reduction on custom parts"
Jiga is the best way to get the parts you need, when you need them.
Advantages of Chamfers:
- Eased assembly alignment: Chamfered edges ease the alignment and insertion of parts during assembly, for mating components.
- Stress relief: Chamfers reduce the stress concentration at sharp edges, reducing the risk of fracture failure at high-stress edges.
- Aesthetics and safety: They improve the appearance of parts and make edges safer to handle by removing or moderating sharp edges.
- Cost-effective manufacturing: Chamfers, both internal and external, simplify the machining process and can reduce manufacturing time and tool wear, as sharp corners are more costly to produce to a high standard.
Disadvantages of Chamfers:
- Limited strength benefits in some cases: While chamfers do relieve stress, they are not as effective as fillets in some high-stress applications, where more substantial material reinforcement is required.
- Not always appropriate for high-strength applications: Chamfers, especially at shallow angles, may not offer sufficient strength or load distribution for certain heavy-duty components.
Fillet: Where and why it’s used

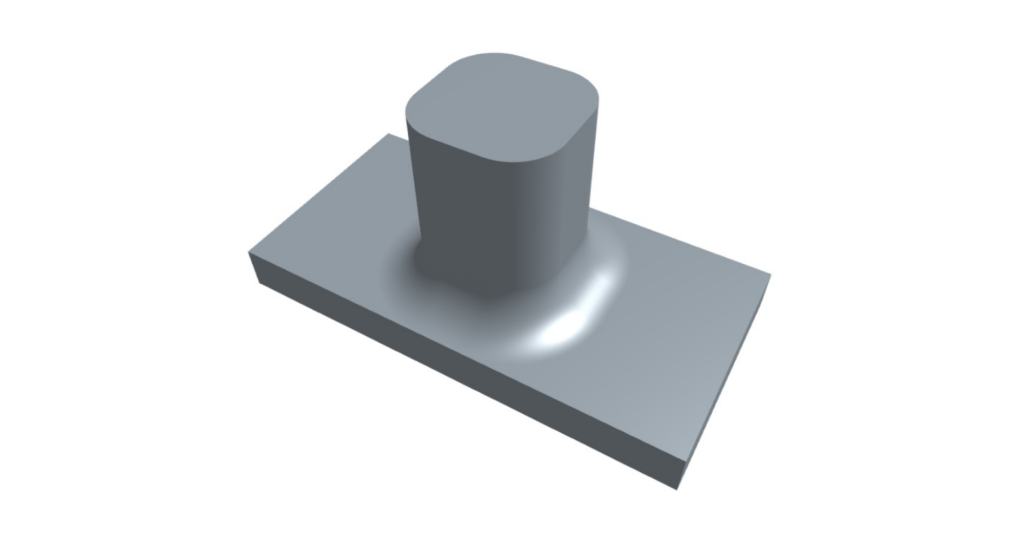

A fillet is a rounded or curved edge or transition between two intersecting surfaces, typically created from unremoved (internal) or additionally removed material (external) at a transition. Fillets are used to eliminate sharp corners and provide smooth transitions between surfaces. Unlike chamfers, fillets involve curved transitions, rather than abrupt changes to an intermediate, flat surface.
Fillets are typically used to strengthen joints and reduce the likelihood of material fatigue and stress concentration, particularly in high-stress or load-bearing elements. Fillets are critical for ensuring structural integrity, as they greatly enhance the stress and fatigue resilience of junctions by providing a more progressive distribution of stresses across typical surface-to-surface transitions.
Applications of Fillets:
1. Stress delocalization
One of the primary purposes of fillets is to reduce stress concentrations, particularly in areas where forces or loads are applied that create a fracture risk. Sharp edges create points of high-stress concentration, which can lead to cracks and progressive failure. A fillet creates a smooth, gradual curve that dissipates these localized stresses, making it particularly useful in components subjected to bending, tension, or shear forces.
2. Structural reinforcement
In structural engineering, fillets are used to strengthen connections between components. For example, in welded or bolted joints, the application of fillets allows forces to distribute more evenly across the surface, reducing the risk of failure. Fillets are often used in critical parts of bridges, frames, and load-bearing structures where safety and durability are paramount.
3. Fluid flow optimization
Fillets are commonly used in applications involving fluid flow, such as in piping, ducts, or turbine blades. The smooth curve of a fillet reduces turbulence and friction in cross-section changes, which can enhance the flow properties of systems like pumps, compressors, and heat exchangers.
4. Fatigue resistance
In parts that experience cyclical loading, fillets are particularly effective in improving fatigue resistance. By distributing stresses more evenly and eliminating or moderating stress concentrations, fillets reduce the incidence of crack initiation, a common cause of failure under cyclic loads.
5. Casting and molding
Fillets are also used in casting and molding processes to reduce the risk of material defects by enhancing laminar flow in charging cavities. When a sharp corner is present in a mold or casting, the material tends to undergo greater turbulence at sharp corners, degrading local material properties in the resultant casting. Fillets reduce this risk by facilitating a more uniform distribution of the molten charge material.
Advantages of Fillets:
- Improved stress distribution: Fillets reduce stress concentrations, providing better load distribution across joints and parts.
- Increased fatigue resistance: The smooth curves of fillets reduce the likelihood of crack initiation in components subjected to cyclic loads.
- Better fluid flow: Fillets optimize the flow of liquids or gases, reducing turbulence and improving system efficiency. Similarly, in casting, lower turbulence allows easier fill and greater uniformity in crystalline structure, once cooled
- Structural integrity: Fillets strengthen joints and connections in load-bearing applications, improving the overall durability and safety of the component.
Disadvantages of Fillets:
- Manufacturing complexity: Fillets can be more difficult to produce compared to chamfers, particularly when the required radius is large.
- Material consumption: In some applications, fillets may require more material than chamfers, which could increase the cost and weight of the component.

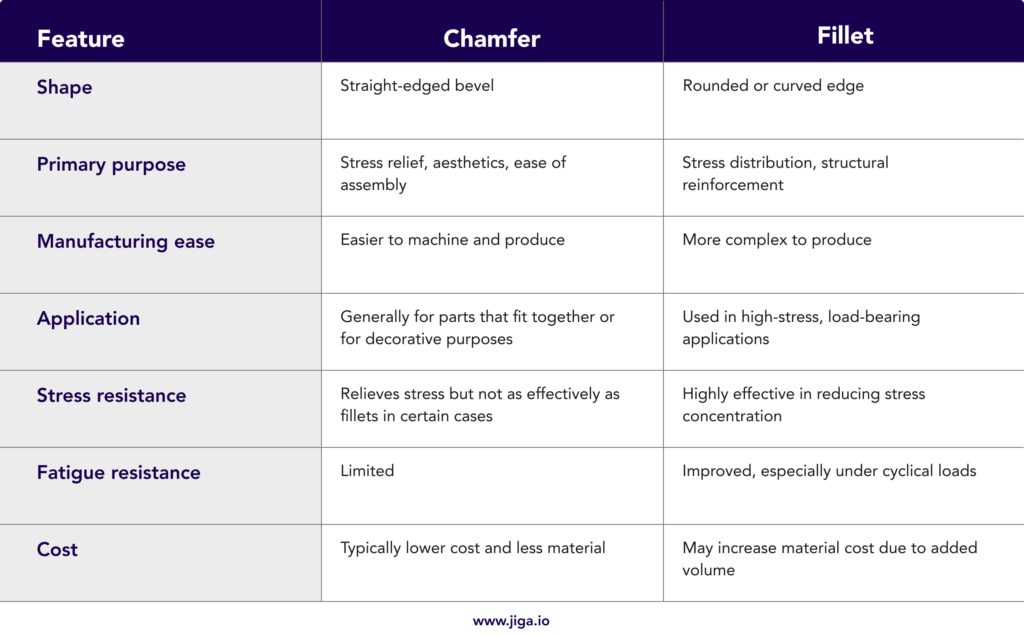

Understanding the differences that matter in design
Conclusion
Both chamfers and fillets are crucial geometric features in engineering, serving different but complementary purposes. While chamfers are generally used to ease assembly, improve aesthetics, and reduce sharp edges for safety, fillets play a more significant role in reinforcing the strength and durability of transitions, particularly under high stress and cyclic fatigue loading.
The choice between chamfers and fillets depends on the specifics of the application, the material being used, manufacturing processes and the functional requirements of the component.
In some cases, both features may even be employed within the same design to achieve a balance between ease of manufacturing, aesthetics, strength, and safety.
Ultimately, the decision to use a chamfer or a fillet must be driven by the required outcome in terms of the part’s broad performance and functionality requirements.
